Filtration Equipment

The unique lining used in Antimicrobial Tubing has been proven to be 100% effective against the top 4 beverage spoiling bacteria for up to 2,000 liters of flow. The tubing is also PVC and BPA free.

The Buon Vino Mini Jet has been designed with the small quantity winemaker in mind. It is the perfect way for the home hobbyist to produce a wine with a commercial shine. Perfect for the home winemaker who filters 23L (5 Gallons) at a time from kits.

Its compact design incorporates a self-prime motorized pump capable of filtering up to 20 litres in 15 minutes. A built in drip tray and drainage tube ensure a no mess, no fuss clean-up job. And its triple filter pads add a crystal clear, sparkling quality to your wine.

Technical Specifications:

• self-prime pump
• incorporated motor
• filtering surface 465 square cm
• filtering time: 15 minutes per 20 litre jug (approximate)
• 3 grades of pads: coarse, polish, and sterilizing
• dimensions: 30 cm (length) x 14 cm (width) x 18 cm (height)
• weight: 3 kilograms
• C.S.A. approved

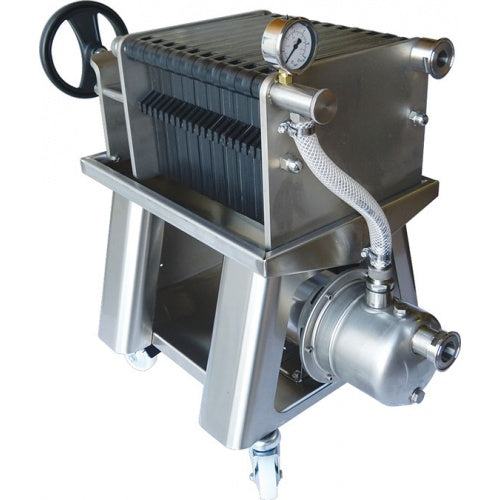

Ideal for clarifying your wine, giving it the brilliance and sparkle that previously was only achieved in commercial wines, the Buon Vino Super Jet is a professional advancement in home wine making made easy.

The Super Jet has been designed with ease and quality in mind. Wine is drawn by means of a self-prime pump into the plastic filtering plates which house the filter pads. The specially designed grooves on the plastic filtering plates direct the wine through the filter pads, allowing the unit to achieve optimum filtering capability.

Ideal for the home wine makers who make wine from grapes, berries or fresh juice and produces 40Gal - plus per year.

Technical Specifications:

• self-prime pump
• filtering surface 1200 square cm
• filtering time: 1 hour per 270 litres (approximate)
• 3 grades of pads: coarse, polish, and sterilizing
• dimensions: 49 cm (length) x 26 cm (width) x 46 cm (height)
• weight: 13 kilograms
• C.S.A. approved

The filter housing is reinforced, clear polypropylene and has 3/8" female pipe thread openings. Seal a filter cartridge inside and use two jumper hoses to install the housing inline between two kegs and push liquid from the first keg, through the filter, and into the second keg under CO2 pressure.

Replacement o-ring gasket for our 10" filter housing.

Product description:

- T-style flow pattern

- 100 psi (67degreesF) pressure rated for liquid applications providing added assurance of high pressure stability,

- Made of electropolished 316L stainless steel

- Tri-clamp closure

- For Code 7, 226 O-ring filter cartridges

- 1.5" Tri-clamp inlet/outlet

-  1.5" Tri-clamp vent port



PRICE INCLUDES:

- 2 Sanitary pressure gauges for vent

- A set of butterfly valves for the inlet/outlet

- 1 stainless steel "T"

- Two sample valves for air bleed-off

- Housing on three stainless steel legs

Large fine-mesh straining bag 18 3/4" x 19".

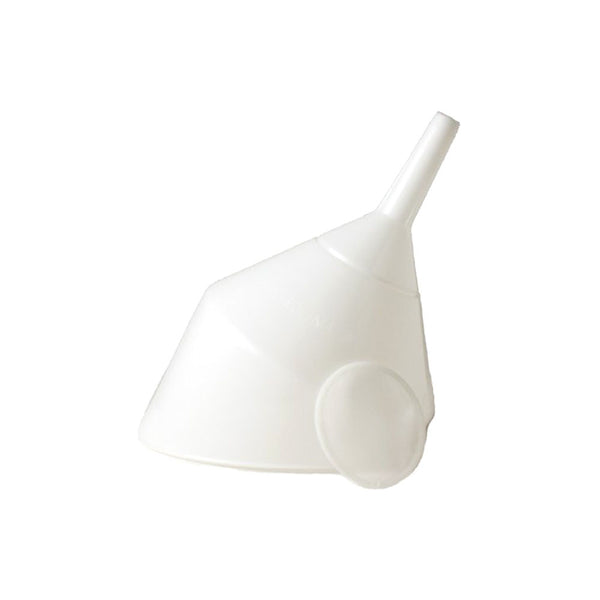

Durable plastic funnel with anti-splash design. 10" is good for filling barrels and can be used with carboys if someone holds it in position. Comes with snap-in strainer.

Features:

Material in 316L stainless steel, sanitary construction with electro polish.
Equipped with sanitary pressure gauges, two butterfly valves and fittings.
Vent valve and drain included with the housing.
A 12” 3-high lenticular housing can hold the equivalent of almost 34 40x40 filter sheets.

Benefits:

Filtration without product losses due to an enclosed design.
Filter requires less space than a standard plate filter due to its vertical design.
Simple to load and break down – no need for wetting and retightening.

Measures: 15.7” x 48”

A simple but effective screen that works very well when racking with whole hops, oak, or fruit in the fermenter. Simply slide this over the bottom of a 3/8" racking cane and begin the siphon! Made from Stainless Steel mesh. Can also be used attached to a keg downtube.

Sanitary membrane filter housing for sterile filtration prior to bottling. Superior material and sanitary construction meets stringent beverage sterile filtration applications. Unsurpassed quality with great price. Complete set up, filter cartridge sold separately.

FEATURES:
• Made of 316L stainless steel, electropolished
• Equipped with two sanitary pressure gauges 1 ½” TC
• Two butterfly valves and fittings are included
• Equipped with two sample valves for air bleed off
• Maximum Operating pressure 100 psi (67°F)
• Fitted for code 7, 226 o-ring filter cartridge (code 8 available
upon request)
• Filter housing has three stainless steel legs
• Single to 12 cartridge housing with swing bolt design on base
• Sterilization using in-line stream, autoclave or hot water

Mesh & perforated gasket screens fit in-line with your tri clamp connections to filter out large particles. They're a great way to protect your pumps and tanks from debris that might otherwise clog or contaminate it. 316 stainless steel is bonded to standard tri clamp gaskets. A sanitary, reusable solution to quality control.

• 10-mesh: The loosest mesh we normally stock. Woven S/S with .0750" holes. Equivalent to a 1887 micron filter.

Mesh & perforated gasket screens fit in-line with your tri clamp connections to filter out large particles. They're a great way to protect your pumps and tanks from debris that might otherwise clog or contaminate it. 316 stainless steel is bonded to standard tri clamp gaskets. A sanitary, reusable solution to quality control.

• 40-mesh: Woven S/S with .0150" holes. Equivalent to a 377 micron filter.

Mesh & perforated gasket screens fit in-line with your tri clamp connections to filter out large particles. They're a great way to protect your pumps and tanks from debris that might otherwise clog or contaminate it. 316 stainless steel is bonded to standard tri clamp gaskets. A sanitary, reusable solution to quality control.

• 60-mesh: Woven S/S with .0090" holes. Equivalent to a 226 micron filter.

Meets 3A and FDA criteria for direct contact with food & beverage. Screen gaskets for Tri Clamp / Tri Clover style fittings.

• Perforated S/S with .0150" holes. Equivalent to a 377 micron filter.

Extra large, multi-use, course mesh nylon straining bag. Measures 2' x 3'.

Reinforced, FDA approved, food grade tubing. Reinforced Vinyl is rated up to 158 degrees F, and 200PSI. Sold by the foot.
